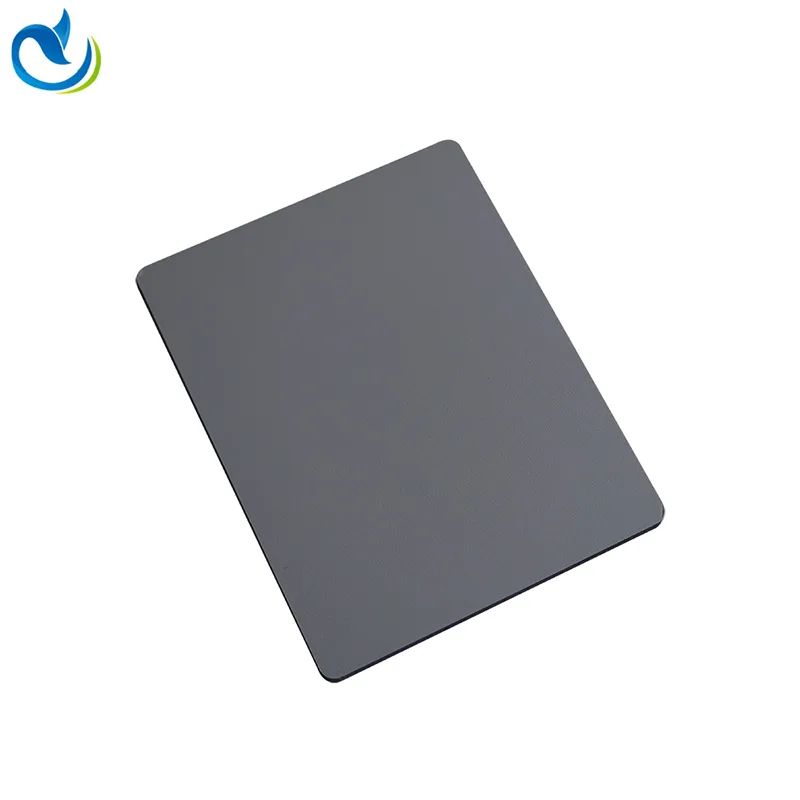

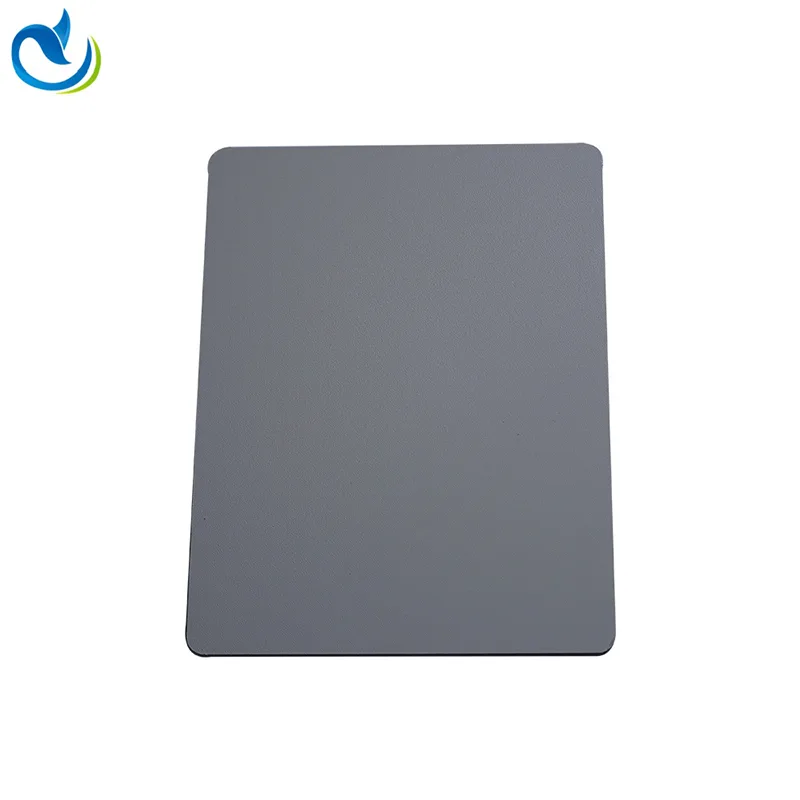

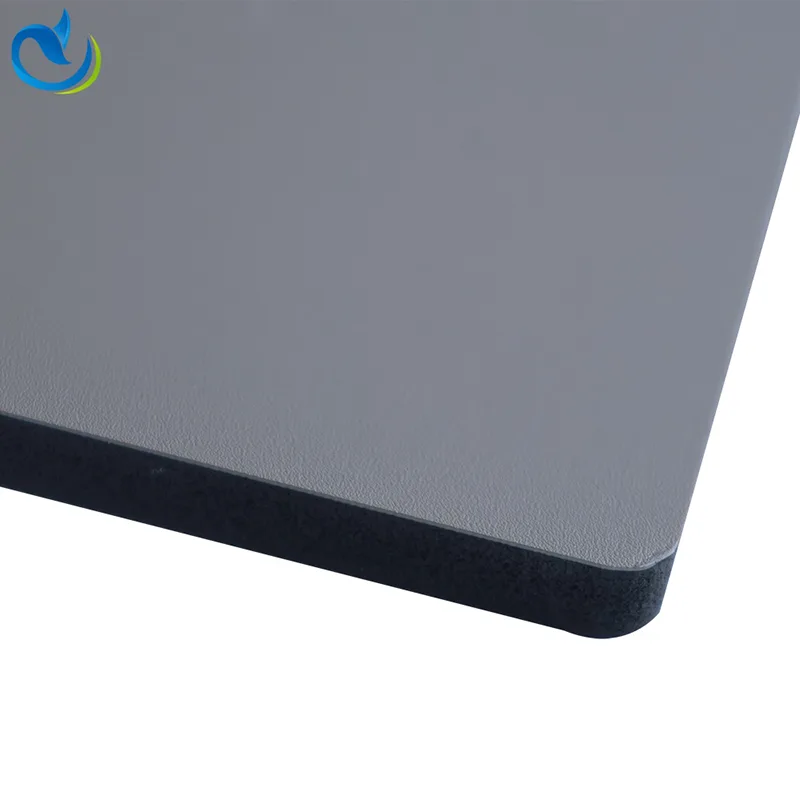

5D Printed Carbon Crystal Wall Panels

Our 5D Printed Carbon Crystal Wall Panels are specifically formulated for the Middle East region.It can prevent heat transfer, resist ultraviolet rays and sand abrasion, and maintain its size stability within the entire temperature range of 15°C to 48°C that you experience each year.

Send Inquiry

Product Description

Your project faces daily exposure to summer temperatures of 45°C, Shamal sandstorms, and coastal salt-laden air.Ordinary gypsum boards, paints or low-grade PVC sheets will deform, fade and crack within two years.Your HVAC system will pay the price for this.

Why were 5D Printed Carbon Crystal Wall Panels chosen for the projects in the Gulf region?

·Thermal barrier to reduce HVAC load

The thermal conductivity of the composite core material (PVC resin + calcium carbonate + bamboo and wood fibers) is only 0.18 W/m·K - nearly 5 times lower than that of concrete.By installing it on the inner wall, you can immediately reduce the heat gain through the outer wall, which means the air conditioner runs less, consumes less energy, and has a longer lifespan.For a commercial project of 10,000 ㎡, this means that the operating costs will significantly decrease from the very first day of operation.

·Dimensional stability under extreme high temperatures

Non-engineered panels will expand and contract significantly during the day and night, resulting in gaps at the seams or bulges on the surface.Our carbon crystal formula uses high-grade UV stabilizers and tightly cross-linked polymer structures.The independent accelerated aging test showed that after simulating 10 years of exposure in the gulf region, the tensile strength remained at 95%.

·Built in anti dust storm and anti UV performance

The PET laminated surface can resist scratches caused by abrasive silica particles carried by sandstorms.The anti fading grade of 5D Printed Carbon Crystal Wall Panelss is suitable for adjacent indoor use on exterior walls that are exposed to direct sunlight through glass.The surface of the 5D Printed Carbon Crystal Wall Panels can be cleaned simply by wiping with water - year after year, there is no need for repainting or renovation.

·Technical Specifications

Parameter	Value
Standard size	1220 mm × 2440 / 2600 / 2800 / 3200 mm (customizable)
Thickness	5 mm / 8 mm / 9 mm
Density	650–1000 kg/m³
Thermal conductivity	≤ 0.18 W/m·K
Fire rating	B1 (self-extinguishing)
Formaldehyde	E0 grade, zero added formaldehyde
Water absorption	< 1.5%
Surface options	PET marble, wood grain, high-gloss, matte, fabric, metal, leather
Certifications	ISO 9001, CE, SGS
